ABB AF40-30-22-13 100-250V50/60HZ-DC CONTACTOR

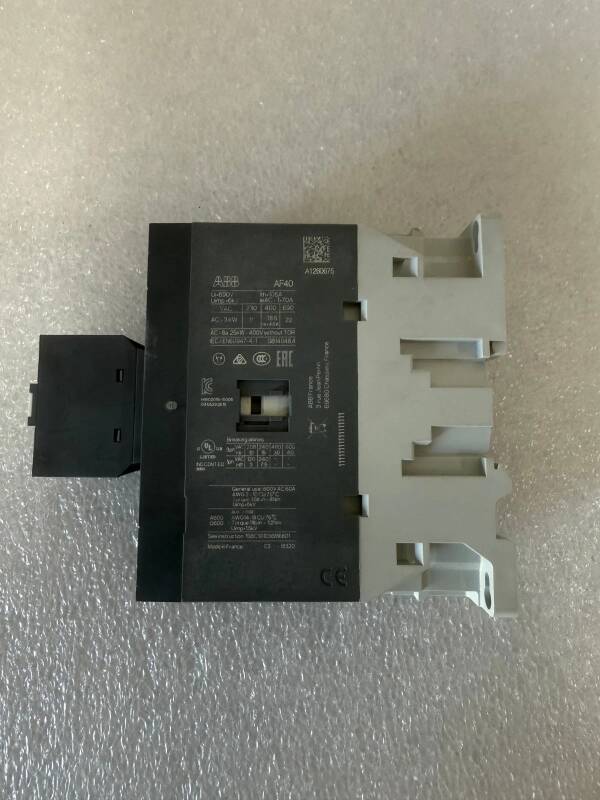

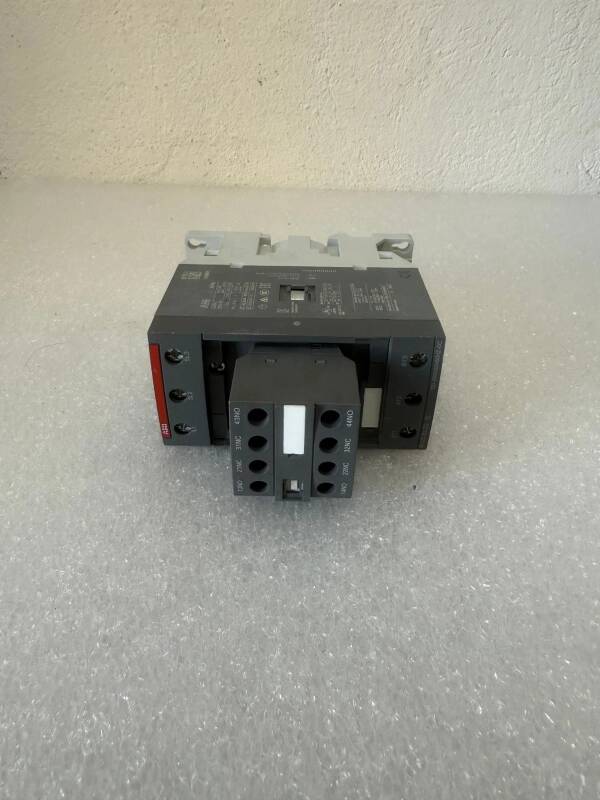

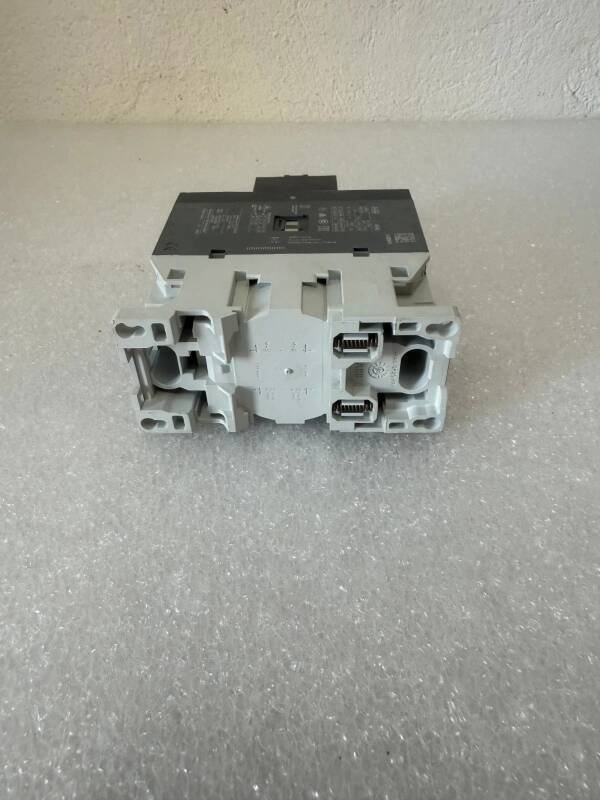

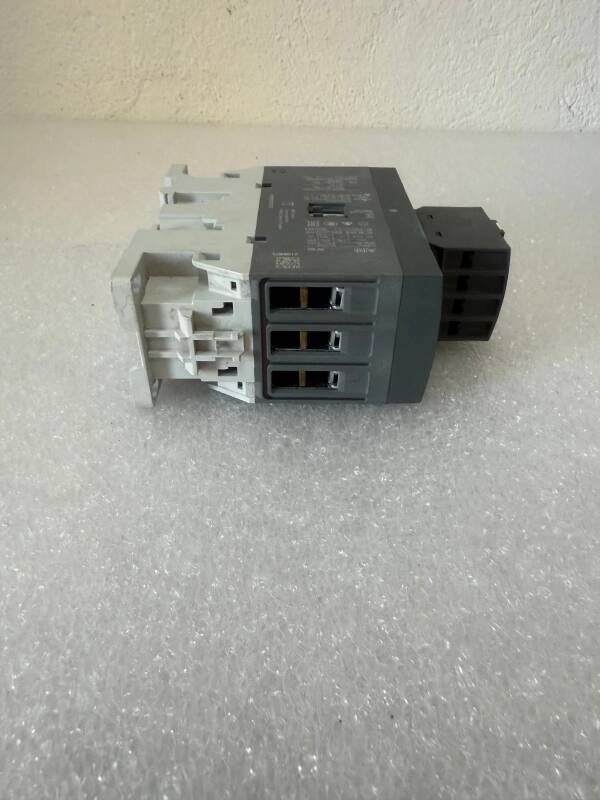

ABB AF40-30-22-13 Contactor (100-250V 50/60Hz-DC)
The ABB AF40-30-22-13 is a premium contactor from ABB’s advanced AF series, designed for efficient control of electrical circuits and motors in industrial and commercial environments. This model features ABB’s innovative electronic coil technology, allowing it to operate smoothly across a wide voltage range (100-250V AC/DC, 50/60Hz), making it highly versatile and suitable for global applications.
Key Features
- Manufacturer: ABB
- Series: AF Series
- Model: AF40-30-22-13
- Type: Contactor
- Rated Operational Current: 40 A (AC-3, 400 V)
- Contact Configuration: 3 Normally Open (3NO) main contacts + 2 Normally Closed (2NC) auxiliary contacts
- Coil Voltage: 100-250V AC/DC, 50/60Hz (wide voltage range for flexible control)
- Rated Operational Voltage: Up to 690 V AC
- Mounting: DIN rail or screw mounting for fast and easy installation
- Mechanical Durability: High switching cycles for extended service life
- Dimensions: Compact size for space-saving installation in control panels
- Certifications: IEC 60947-4-1 compliance for safety and reliability
- AF Technology: Advanced coil design for energy efficiency and stable operation
Applications
- Motor Control: Ideal for starting, stopping, and reversing three-phase motors up to 40A
- Lighting Systems: Reliable switching of lighting circuits in commercial buildings and factories
- Heating and Ventilation: Control of heating elements, fans, and HVAC equipment
- Industrial Automation: Integration in automated systems for machinery and process control
- Power Distribution: Suitable for use in distribution boards and electrical control panels
Advantages
- Wide Coil Voltage Range: The AF technology allows operation with both AC and DC voltages from 100 to 250V, simplifying selection and reducing inventory needs
- Energy Efficient: Low coil consumption and reduced heat generation help lower operating costs
- Global Compatibility: Suitable for international use thanks to broad voltage and frequency support
- Reliable Performance: Engineered for stable and consistent operation in demanding environments
- Flexible Installation: Multiple mounting options and compact design for easy integration
- Auxiliary Contacts: Two additional NC contacts for expanded control and signaling options
Additional Description
The ABB AF40-30-22-13 Contactor is the professional’s choice for robust and flexible motor and circuit control. Its electronic coil technology ensures reliable performance even in fluctuating voltage conditions, making it ideal for modern, automated installations. Whether used in motor starters, control panels, or industrial automation systems, this contactor delivers ABB’s renowned quality, durability, and efficiency.
