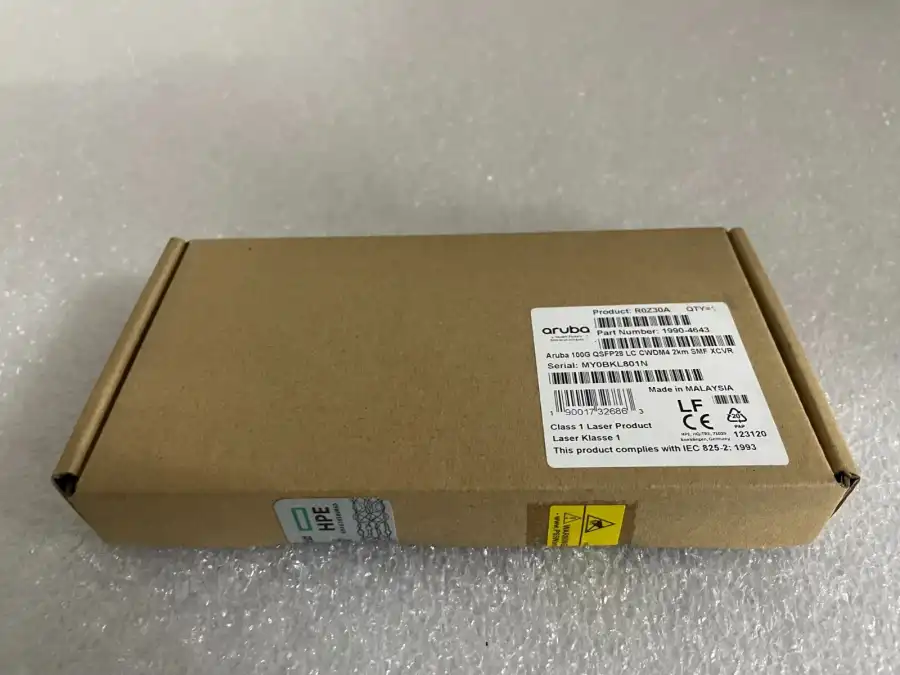

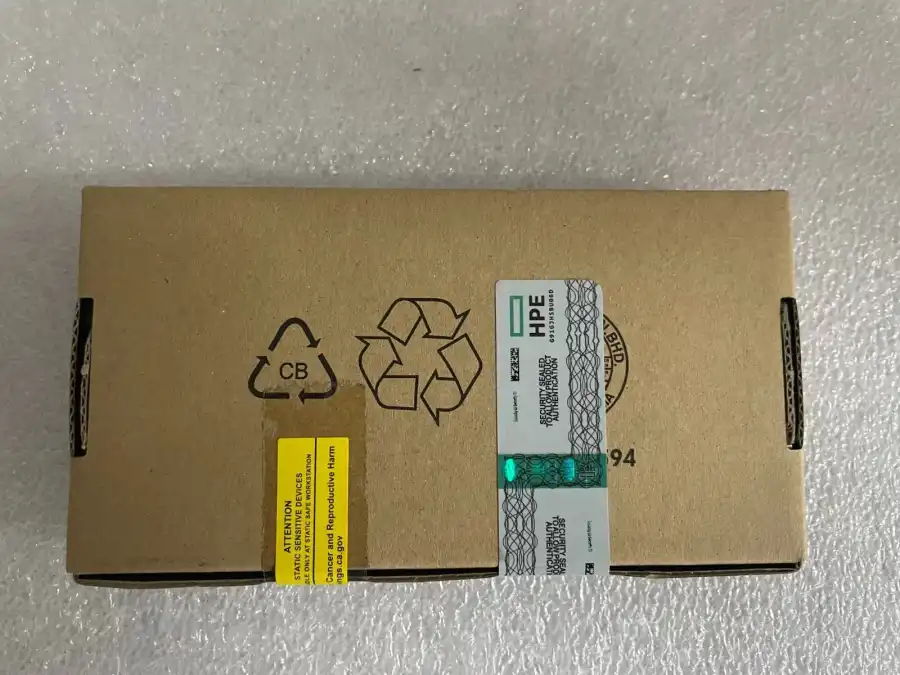

NEW HPE ARUBA R0Z30A Aruba 100G QSFP28 LC CWDM4 2km 1990-4643 Transceiver

General Specifications:

• Form Factor: QSFP28
• Data Rate: 100 Gbps
• Wavelength: CWDM (Coarse Wavelength Division Multiplexing)
• Wavelength Range: 1264.5 nm to 1337.5 nm
• Transmission Distance: Up to 2 km over single-mode fiber (SMF)
• Connector Type: LC duplex connector
• Cable Compatibility: Single-mode fiber (SMF)

Performance Specifications:

• Tx Power: Typically ranges from +0.5 dBm to +6 dBm
• Rx Sensitivity: Typically around -12.6 dBm
• Maximum Link Length: 2 km
• Operating Temperature Range: 0°C to 70°C (commercial grade)

Electrical Interface:

• Compliance: 100GBASE-CWDM4
• Protocol Support: Supports Ethernet and various data center protocols

Additional Features:

• Hot-Pluggable: Yes, allowing for easy replacement without shutting down the system
• Digital Diagnostics Monitoring: Supports MSA (Multi-Source Agreement) compliant digital diagnostics monitoring features
