VIAVI CellAdvisor JD724C Cable and Antenna Analyzer

General Features

• Model: JD724C
• Type: Cable & Antenna Analyzer
• Application: Designed for installation, maintenance, and troubleshooting of wireless communication networks.

Technical Specifications

• Frequency Range:

  • Typically covers a wide frequency range, from 2 MHz to 6 GHz, accommodating various wireless technologies.

• Measurement Capabilities:

  • Return Loss (RL): Measures the reflection of RF signals.
  • VSWR (Voltage Standing Wave Ratio): Assesses the efficiency of the antenna system.
  • Cable Loss: Evaluates signal loss in cables.

• Display:

  • Large, color touchscreen display for easy navigation and data interpretation.
  • Graphical representation of measurements for clearer analysis.

Connectivity

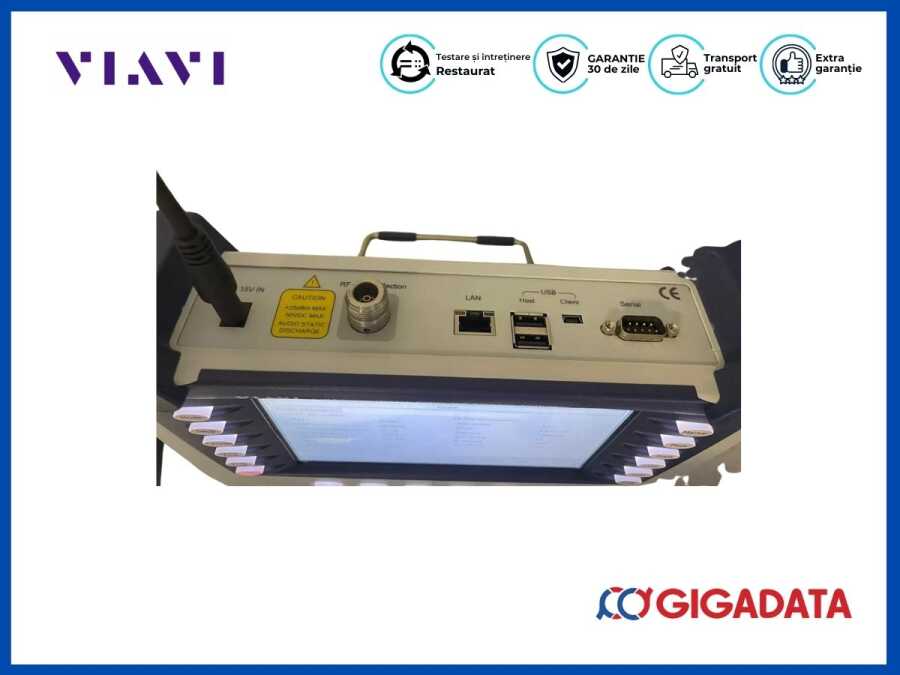

• Input/Output Ports:
  • RF input for connecting to antennas and cables.
  • USB ports for data transfer and software updates.
  • Ethernet port for network connectivity.

Performance

• Power Supply:
  • Rechargeable battery with long operational life, suitable for field use.

Environmental Specifications

• Operating Temperature:

  • Typically operates within a range of -10 °C to +50 °C.

• Ingress Protection:

  • Designed to withstand harsh environmental conditions (specific IP rating may vary).

Features

• User Interface:

  • Intuitive interface with customizable settings for various applications.
  • Built-in help guides and tutorials for ease of use.

• Data Storage:

  • Internal memory for storing measurement data and results.
  • Capability to export data for reporting and analysis.
