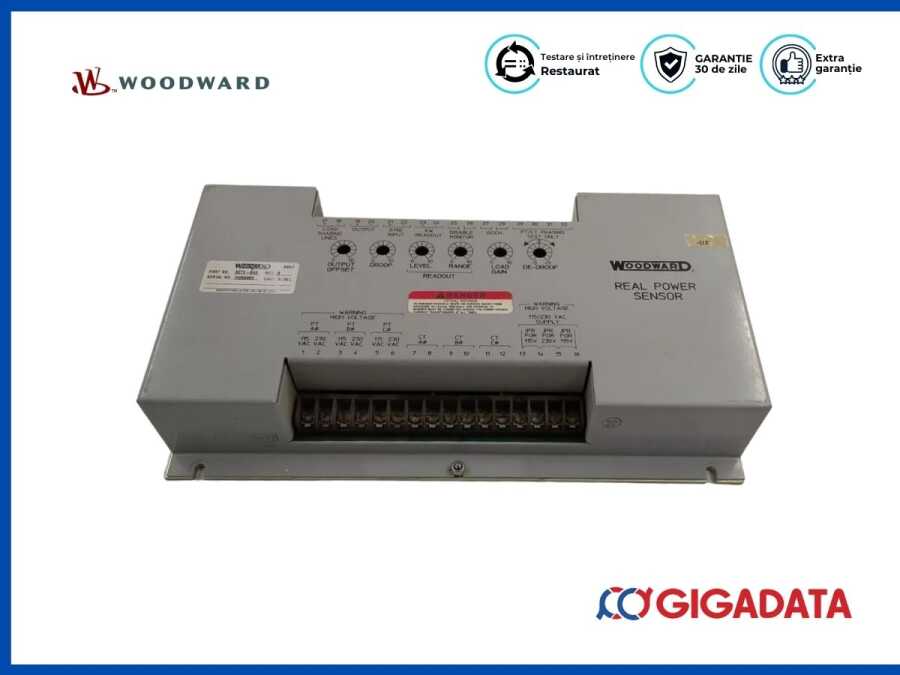

Woodward 8272-843 Rev B Real power sensor

General Features

• Model: Woodward 8272-843 Rev B
• Type: Real Power Sensor
• Application: Designed for measuring real power in electrical systems, particularly in generator and turbine applications.

Technical Specifications

• Input Voltage:

  • Typically operates within a specified range (e.g., 120V to 480V AC).

• Measurement Range:

  • Capable of measuring real power in various ranges, suitable for different applications.

• Output Signal:

  • Provides output signals that can be used for monitoring and control, often in the form of analog signals (e.g., 4-20 mA).

Performance

• Accuracy:

  • High accuracy in real power measurement, essential for effective monitoring and control.

• Response Time:

  • Fast response time for real-time monitoring applications.

Environmental Specifications

• Operating Temperature:

  • Typically operates within a range of -40 °C to +70 °C.

• Ingress Protection:

  • Designed to meet relevant IP standards for protection against dust and moisture, often IP65.

Features

• User Interface:

  • May include LED indicators for status monitoring.

• Configuration:

  • Configurable settings for various operational parameters.

• Diagnostic Functions:

  • Built-in diagnostics for system health monitoring and troubleshooting.

Additional Features

• Durability:

  • Rugged design suitable for industrial environments.

• Compliance:

  • Meets relevant safety and performance standards for electrical measurement devices.
